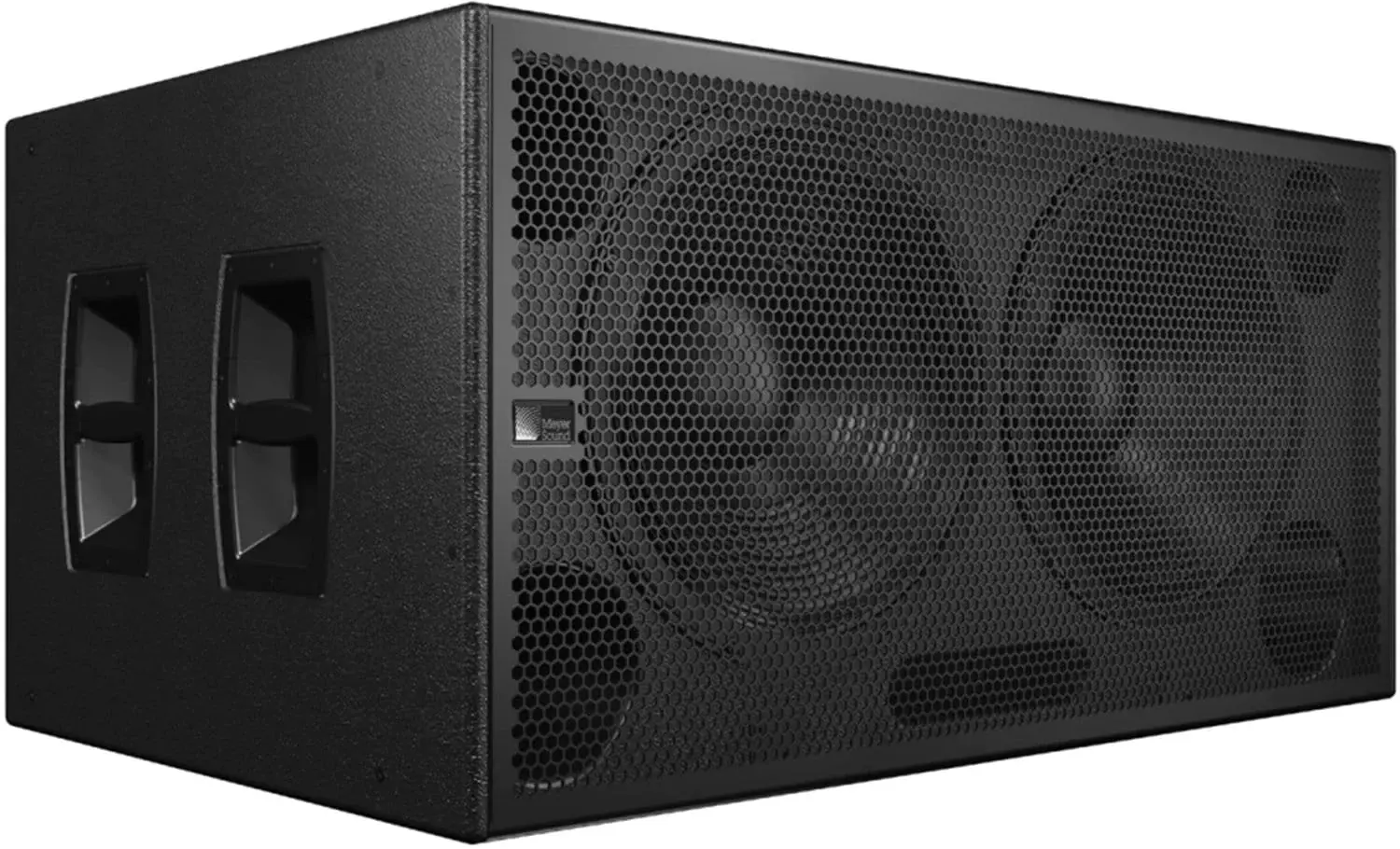

Meyer Sound 700-HP Powered Subwoofer

Meyer Sound 700-HP Powered Subwoofer

$250.00Price
Excluding Sales Tax

Meyer Sound 700-HP Powered Subwoofer

The Meyer Sound 700-HP ultrahigh-power subwoofer sets a new standard for the power-to-size equation. The 700-HP’s power and bandwidth handle high continuous operating levels and extreme transient information with minimal distortion in its operating frequency range. Meyer Sound’s rigorous design approach has been applied to extract the greatest efficiency from every part of the system, resulting in the 700-HP subwoofer's effortless reproduction of low-frequency transient information. The transducers, amplification and control electronics of the self powered 700-HP are created as a symbiotic system that optimizes performance and maximizes its tremendous power.

Features:

  • Stackable
  • Flyable using optional rigging kit
  • Extremely low distortion for ultimate low-frequency clarity
  • Very high peak power yields excellent transient reproduction
  • Transportable in blocks using optional heavy duty caster frame
  • Exceptionally reliable and durable

Specifications:

  • ACOUSTICAL
    • Operating Frequency Range1: 28 Hz – 150 Hz
    • Free Field Frequency Response2: 30 Hz – 125 Hz ±4 dB
    • Phase Response: 45 Hz - 145 Hz ±30°
    • Maximum Peak SPL3: 139 dB
    • Dynamic Range: >110 dB
  • COVERAGE
    • 360° (single unit); varies with number of units and configuration
  • TRANSDUCERS
    • Low Frequency:
      • Two 18" cone drivers Nominal impedance: 4 Ω Voice coil size: 4" Power-handling capability: 1200 W (AES)
      4
  • AUDIO INPUT
    • Type: Differential, electronically balanced
    • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
    • Connectors: Female XLR input with male XLR loop output or VEAM all-in-one (integrates AC, audio and network)
    • Input Impedance: 10 kΩ differential between pins 2 and 3
    • Wiring:
      • Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
      • Pin 2: Signal +
      • Pin 3: Signal –
      • Case: Earth ground and chassis
    • DC Blocking: None on input, DC blocked through signal processing
    • CMRR: >50 dB, typically 80 dB (50 Hz–500 Hz)
    • RF Filter:
      • Common mode: 425 kHz
      • Differential mode: 142 kHz
    • TIM Filter: Integral to signal processing (<80 kHz)
    • Nominal Input Sensitivity: 0 dBV (1 V rms, 1.4 V pk) continuous is typically the onset of limiting for noise and music
    • Input Level: Audio source must be capable of producing a minimum of +20 dBV (10V rms, 14 V pk) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
  • AMPLIFIER
    • Type: Two-channel complementary power MOSFET output stages (class AB/H)
    • Total Output Power: 2250 W (1125 W/channel)5
    • THD, IM, TIM: <0.02%
    • Load Capacity: 4 Ω each channel
    • Cooling: Forced air cooling, two fans (one ultrahigh-speed reserve fan)
  • AC POWER
    • Connectors: 250 V AC NEMA L6-20 (twist lock), IEC 309 male inlet, or VEAM
    • Automatic Voltage Selection: Automatic, two ranges, each with high-low voltage tap
    • Safety Agency Rated Operating Range: 95 V AC – 125 V AC, 208 V AC - 235 V AC; 50/60 Hz
    • Turn‑on and Turn‑off Points: 85 V AC - 134 V AC; 165 V AC - 264 V AC; 50/60 Hz
    • Current Draw- Idle Current: 0.640 A rms (115 V AC); 0.320 A rms (230 V AC); 0.850 A rms (100 V AC)
    • Max Long-Term Continuous Current (>10 sec): 8.8 A rms (115 V AC); 4 A rms (230 V AC); 10 A rms (100 V AC)
    • Burst Current (<1 sec): 19 A rms (115 V AC); 9.5 A rms (230 V AC); 22 A rms (100 V AC)
    • Ultimate Short-Term Peak Current Draw: 39 A pk (115 V AC); 20 A pk (230 V AC); 45 A pk (100 V AC)
    • Inrush Current: 7 A pk (115 V AC); 7 A pk (230 V AC); 10 A pk (100 V AC)
  • RMS NETWORK
    • Equipped with two‑conductor twisted‑pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
  • PHYSICAL
    • Dimensions without Rigging: 45.93" w x 22.50" h x 30.00" d (1167 mm x 572 mm x 762 mm)
    • Dimensions with Rigging: 50.58" w x 22.50" h x 30.00" d (1285 mm x 572 mm x 762 mm)
    • Weight: 204 lbs (92.53 kg)
    • Weight with Rigging: 259 lbs (117.48 kg)
    • Enclosure: Multi-ply hardwood
    • Protective Grille: Perforated metal grille lined with acoustical black mesh
    • Rigging: Optional QuickFly® rigging kit available, with aluminum and steel side rigging bars, AlignaLinks and quick release pins
